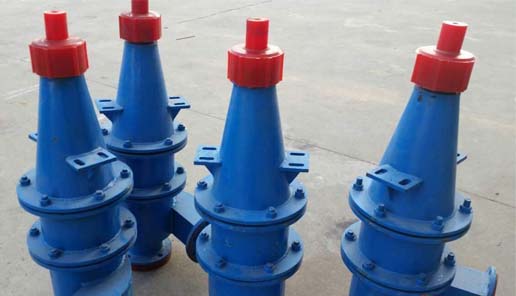

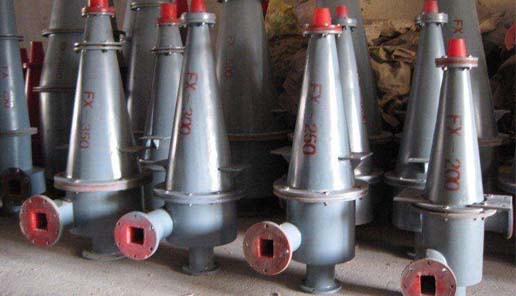

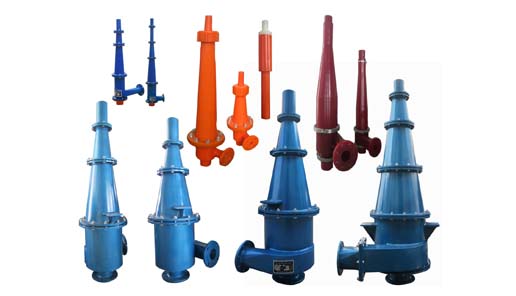

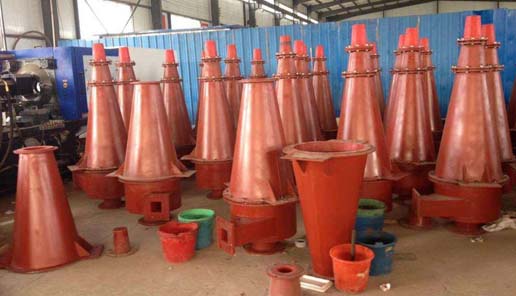

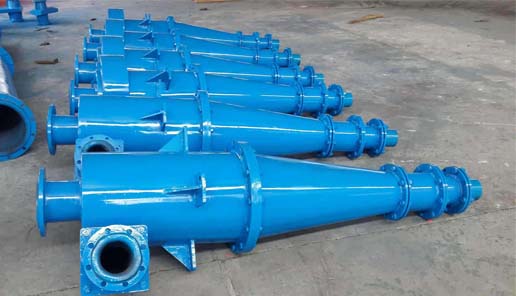

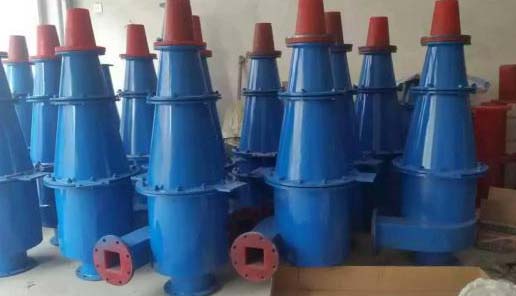

Hydrocyclone
- Wear resistance. The wear resistance is very good, about 3-5 times the rubber.
- O)il resistance. Polyurethane board is a strong polar polymer, and the affinity of non-polar mineral oil, in fuel oil and mechanical oil is almost no corrosion.
- Good resistance to oxygen and ozone.
- Excellent absorption performance can be used to reduce the vibration, buffer effect. In the mould manufacturing industry, alternative rubber and spring.
- Techanical Specification
- More Details
- Drawing
- Contact Us
| Model | Internal dia.(mm) | Inlet pressure(MPa) | Capacity(m³/h) | Cut size(μm) |
| FX840 | 840 | 0.04-0.15 | 500-900 | 74-350 |
| FX710 | 710 | 0.04-0.15 | 400-550 | 74-250 |
| FX 660 | 660 | 0.04-0.15 | 160-450 | 74-220 |
| FX610 | 610 | 0.04-0.15 | 200-300 | 74-200 |
| FX500 | 500 | 0.04-0.2 | 140-240 | 74-200 |
| FX400 | 400 | 0.04-0.2 | 100-170 | 74-150 |
| FX350 | 350 | 0.04-0.2V | 70-160 | 50-150 |
| FX300 | 300 | 0.04-0.2 | 45-90 | 50-150 |
| FX250 | 250 | 0.04-0.3 | 40-80 | 40-100 |
| FX200 | 200 | 0.04-0.3 | 25-40 | 40-100 |
| FX150 | 150 | 0.04-0.3 | 14-35 | 20-74 |
| FX125 | 125 | 0.04-0.3 | 8-20 | 20-50 |
| FX100 | 100 | 0.04-0.3 | 8-20 | 20-50 |
| FX75 | 75 | 0.1-0.4 | 4-10 | 10-40 |
| FX50 | 50 | 0.1-0.4 | 2-5 | 7-40 |
| FX25 | 25 | 0.1-0.6 | 0.3-1 | 5-20 |
| FX10 | 10 | 0.1-0.6 | 0.05-0.1 | 1-5 |
Hydrocyclone is to separate the two-phase or multi-phase mixture of liquid-liquid, liquid-solid, liquid-gas and so on with a certain density difference under the action of centrifugal force. The mixed liquid is tangentially flowed into the cyclone with a certain pressure, and a high-speed rotating flow field is generated in the cylindrical cavity.
