Model SL110 SL135 SL170 SL225 SL315 SL450 SL450A LBC200 LD300 SL585
Max .static load kN 1100 1350 1700 2250 3150 4500 4500 1700 2600 5850
US ton 120 150 200 250 350 500 500 200 300 650
Dynamic load rating kN 600 1000 1300 1600 2100 3200 3200 1300 1500 4100
US ton 65 110 140 175 230 350 350 140 165 450
Max. Speed rpm 300 300 300 300 300 300 300 300 300 300
Max .pressure MPa 35 35 35 35 35 35 35 35 35 35
psi 5000 5000 5000 5000 5000 5000 5000 5000 5000 5000
Gooseneck connection 3LP 4LP 4LP 4LP 4LP 4LP 4LP 4LP 4LP 4LP
Sub connection 4-1/2

REG-LH

6-5/8

REG-LH

6-5/8

REG-LH

6-5/8

REG-LH

6-5/8

REG-LH

6-5/8

EG-LH

6-5/8

EG-LH

6-5/8

REG-LH

5-1/2

REG-LH

6-5/8

REG-LH

Applicable spinner model   XSL135 XSL170 XSL225 XSL315 XSL450 SL450A XSLBC200

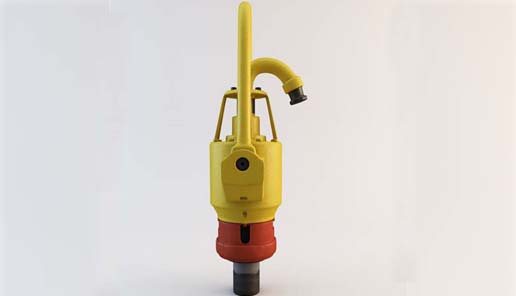

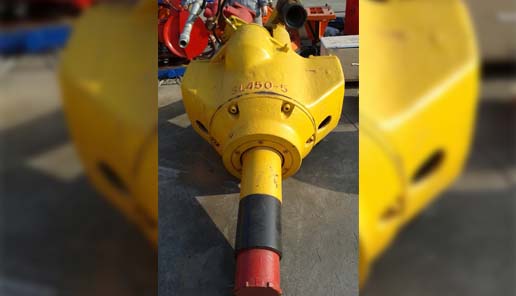

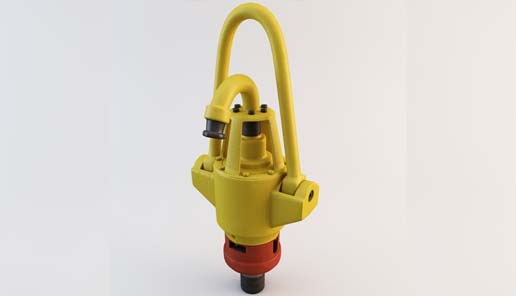

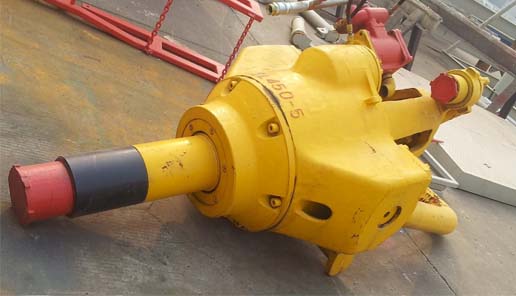

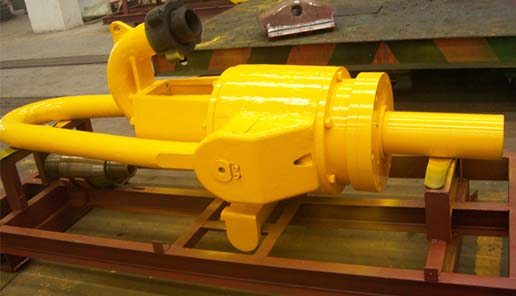

A Swivel is a mechanical device used on a drilling rig that hangs directly under the traveling block and directly above the kelly drive, that provides the ability for the kelly (and subsequently the drill string) to rotate while allowing the traveling block to remain in a stationary rotational position (yet allow vertical movement up and down the derrick) while simultaneously allowing the introduction of drilling fluid into the drill string.

Parts: bail, Gooseneck, upper shell, body, lower shell, swivel stem, shaft, sealing system etc.

Swivel Drawing
