Grades: J55, K55, L80, N80, 80SS, P110

Length Range: R2 or R3

Threading: Inner tube and outer tube threading

Connections: Semi-premium and premium available

Normal operating temperature: 350 Celsius

Conductivity (k) of inner pipe: 0.002 ~ 0.08 W/m·℃

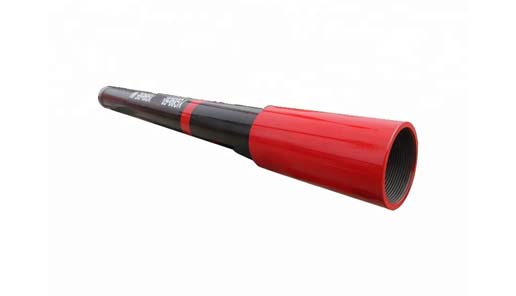

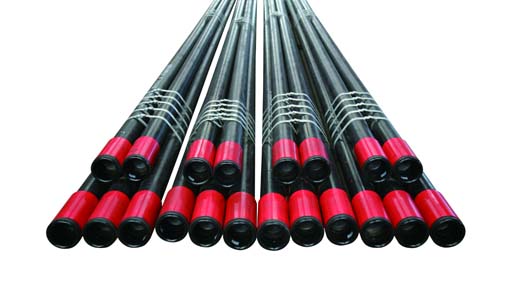

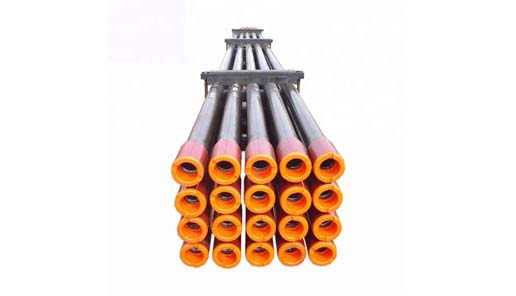

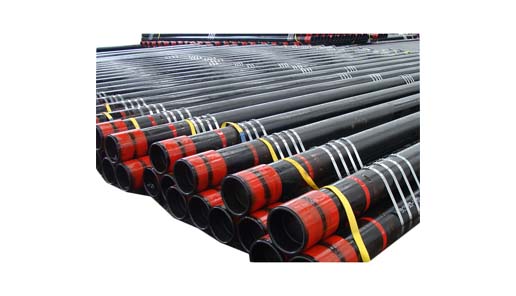

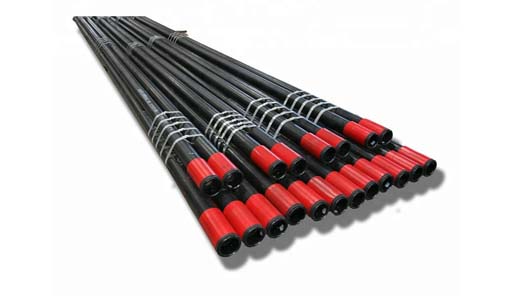

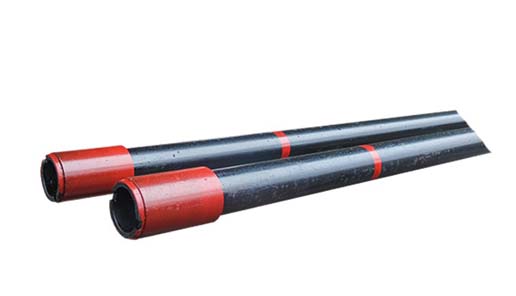

API 5CT Vacuum Insulated Tubing  (VIT)
Model

Outer tube OD x Inner Tube OD

(in x in)

Outer Pipe

ODxWT (mm)

Inner Pipe

ODxWT (mm)

Coupling OD

(mm)

Cementing Center

(in)

Thread
3 1/2 x 2 3/8 88.9 x 6.45 60.3 x 4.83 108 5 3 1/2 USS
4 1/2 x 2 7/8 114.3 x 6.88 73.02 x 5.51 132 7 4 1/2 BC
4 1/2 x 3 1/2 114.3 x 6.88 88.9 x 6.45 132 7 4 1/2 BC
5 x 3 1/2 127.0 x 9.19 88.9 x 6.45 141.3 9 5/8 5BC
5 1/2 x 4 1/2 139.7 x 7.72 114.3 x 6.35 154   5 1/2 BC
7 x 5 1/2 177.8 x 9.19 139.7 x 7.72 154   7 BC



Insulation Grades Available
Grade/Conductivity A B C D E
Heat conductivity coefficient

K=Watt/Meter x Celsius

0.06 ~ 0.08 0.04 ~ 0.06 0.02 ~ 0.04 0.006 ~ 0.02 0.002 ~ 0.006

Vacuum Insulated Tubing (VIT) is designed to develop oil and gas fields located in the most challenging oil and gas production conditions.

For example, Pre-stressed Vacuum Insulated Tubing (VIT) replaces oil tubing for heavy oil recovery by steam injection to improve project economics.

Vacuum insulated tubing & casing uses water-based fiber cloth material with a three grade vacuum pump equipment, automatic welding machine and MT. These guarantees a high degree of vacuum level that meets the insulation grades D and E.

These vacuum insulated tubing & casing use an effective getter to ensure the tubing insulation grade do not decrease after a long time of outdoor storage.

Vacuum Insulated Tubing Drawing
