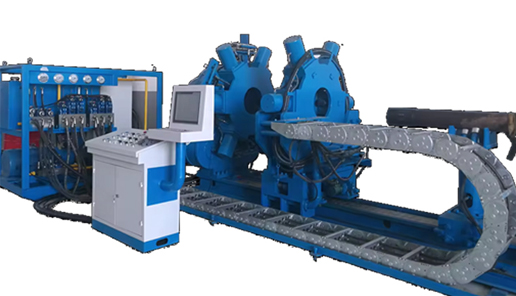

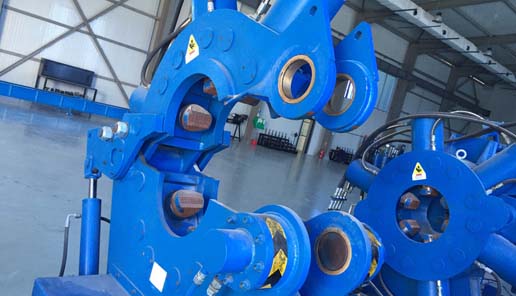

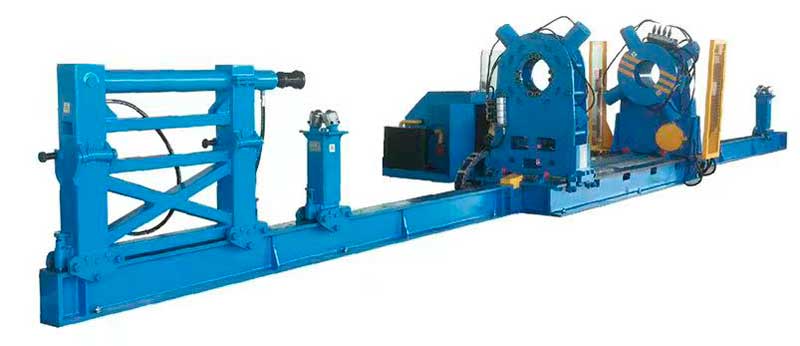

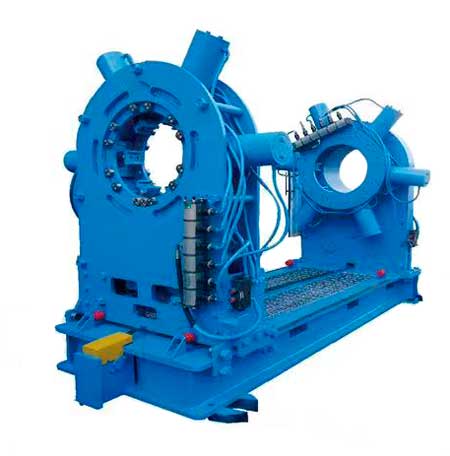

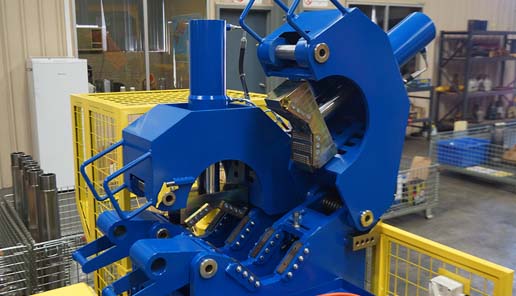

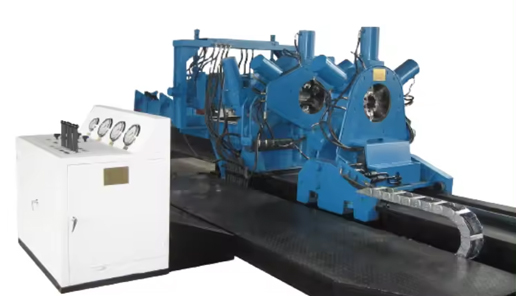

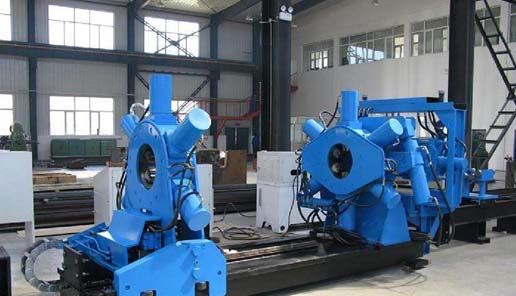

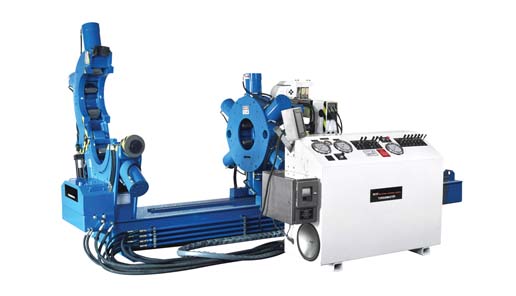

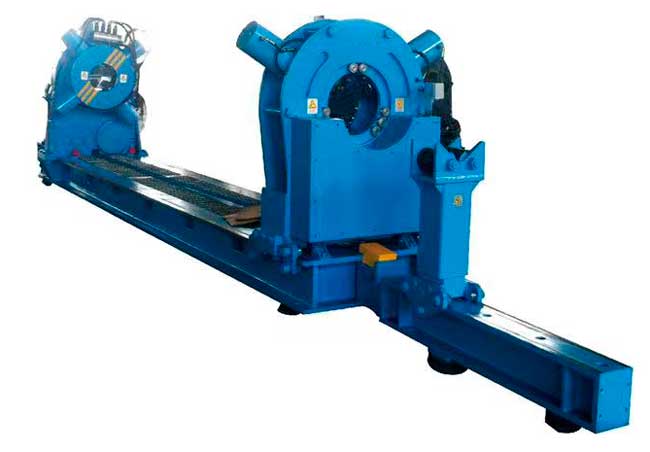

Bucking Unit
- Computer control the equipment real time monitoring.
- High efficiency, needn’t to replace accessories in difference size.
- Automatic control system, Adjustable speed, ensure longer service time.
- We can designed according to your request.
- Technical Specification
- Description
- Contact Us
Model | Rating power
kW(ft.lb/s) |
Rating working pressure of hydraulic system
Mpa(bar) |
Rotation rate
(r/min) |
Tank volume
(L) |
Working medium
|
YZJ200 | 11(7820) | 28(280) | 1500 | 80 | L-HM32anti-wear hydraulic oil |
The caliber of service tool
Mm(in) |
The held length scope of caliber
Mm(in) |
Make-up torque
kN.m(tf.m) |
Unscrew torque
kN.m(tf.m) |
The stand held center height
Mm(in) |
Dimension
Mm(in) |
Ø80-Ø380
(3-1/8~15) |
≥1000
(≥39) |
200
(20) |
200
(20) |
1140
(77-7/8) |
1250x1460x1850
(494x57x73) |
Bucking Unit is mainly used in the production of Tubing, Casing and Couplings.
The unit is normally used to make-up/break-out couplings of casing, tubing and pipes and it supports different type of thread connection.
