Drill Collar
- Hardness range of 285 to 341 BHN and a charpy impact value of 40ft/lbs are guaranteed for evenly distributed 16 points in any cross sections at room temperature.
- Pressed steel thread protectors are supplied to all drill collar that are equipped with standard connections.
- Manufactured strictly according to standard.
- Widely used in oil, gas, HDD and geothermal field.
- Technical Specification
- Contact Us

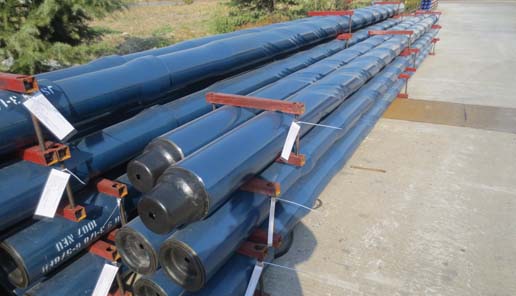

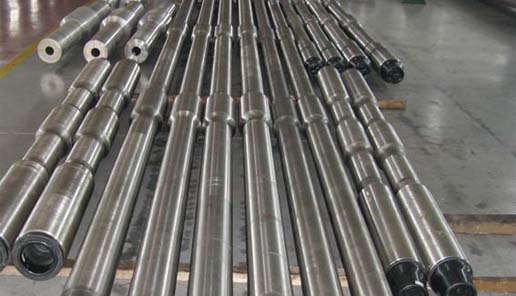

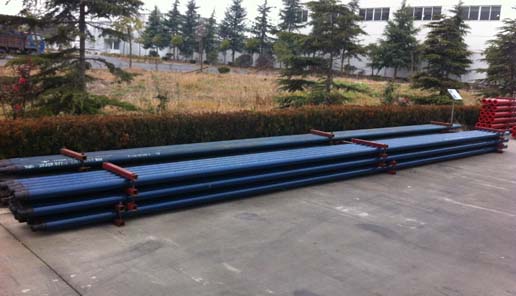

Drill Collar
Drill Collars are integral heavy-wall joints that are manufactured from a solid bar of modified alloy steel. The solid bars are quenched and tempered to obtain the required mechanical properties, then trepanned, drifted and threaded. All drill collars are heat-treated with hardness within 285 to 341 BHN, which are guaranteed one inch below the surface of the pipe.

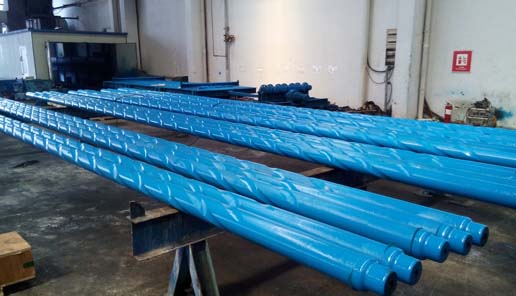

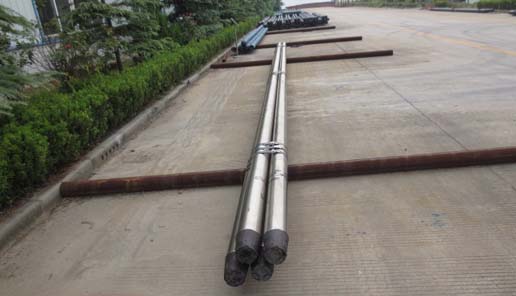

Lake Petro could supply slick type drill collar, spiral drill collar and Non-magnetic drill collar (NMDC).
| Number and connection table | Outside Diameter | Inside Diameter | Length | Bevel Diameter | Bending Strength Ratio | ||
| mm | in | mm | in | mm | mm | ||
| NC23-31 | 79.4 | 3-1/8 | 31.8 | 1-1/2 | 9150 | 76.2 | 2.57:1 |
| NC26-35 (2-3/8 IF) | 88.9 | 3-1/2 | 38.1 | 1-1/2 | 9150 | 82.9 | 2.42:1 |
| NC31-41 (2-7/8 IF) | 104.8 | 4-1/8 | 50.8 | 2 | 9150 | 100.4 | 2.43:1 |
| NC35-47 | 120.6 | 4-3/4 | 50.8 | 2 | 9150 | 114.7 | 2.58:1 |
| NC38-50 (3-1/2 IF) | 127 | 5 | 57.2 | 2-1/4 | 9150 | 121 | 2.38:1 |
| NC44-60 | 152.4 | 6 | 57.2 | 2-1/4 | 9150 or 9450 | 144.5 | 2.49:1 |
| NC44-60 | 152.4 | 6 | 71.4 | 2-13/16 | 9150 or 9450 | 144.5 | 2.84:1 |
| NC44-62 | 158.8 | 6-1/4 | 57.2 | 2-1/4 | 9150 or 9450 | 149.2 | 2.91:1 |
| NC44-62 (4 IF) | 158.8 | 6-1/2 | 71.4 | 2-13/16 | 9150 or 9450 | 150 | 2.63:1 |
| NC44-65 (4 IF) | 165.1 | 6-1/2 | 57.2 | 2-1/4 | 9150 or 9450 | 154.8 | 2.76:1 |
| NC44-65 (4 IF) | 165.1 | 6-1/2 | 71.4 | 2-13/16 | 9150 or 9450 | 154.8 | 3.05:1 |
| NC44-67 (4 IF) | 171.4 | 6-3/4 | 57.2 | 2-1/4 | 9150 or 9450 | 159.5 | 3.18:1 |
| NC50-67 (4-1/2IF) | 171.4 | 6-3/4 | 71.4 | 2-13/16 | 9150 or 9450 | 159.5 | 2.37:1 |
| NC50-70 (4-1/2IF) | 177.8 | 7 | 57.2 | 2-1/4 | 9150 or 9450 | 164.7 | 2.54:1 |
| NC50-70 (4-1/2IF) | 177.8 | 7 | 71.4 | 2-13/16 | 9150 or 9450 | 164.7 | 2.73:1 |
| NC50-72 (4-1/2IF) | 184.2 | 7-1/4 | 71.4 | 2-13/16 | 9150 or 9450 | 169.5 | 3.12:1 |
| NC56-77 | 196.8 | 7-3/4 | 71.4 | 2-13/16 | 9150 or 9450 | 185.3 | 2.70:1 |
| NC56-80 | 203.2 | 8 | 71.4 | 2-13/16 | 9150 or 9450 | 190.1 | 3.02:1 |
| 6-5/8 REG | 209.6 | 8-1/4 | 71.4 | 2-13/16 | 9150 or 9450 | 195.7 | 2.93:1 |
| NC61-90 | 228.6 | 9 | 71.4 | 2-13/16 | 9150 or 9450 | 212.7 | 3.17:1 |
| 7-5/8 REG | 241.3 | 9-1/2 | 76.2 | 3 | 9150 or 9450 | 223.8 | 2.81:1 |
| NC70-97 | 247.6 | 9-3/4 | 76.2 | 3 | 9150 or 9450 | 232.6 | 2.57:1 |
| NC70-100 | 254 | 10 | 76.2 | 3 | 9150 or 9450 | 237.3 | 2.81:1 |
| 8-5/8 REG | 279.4 | 11 | 76.2 | 3 | 9150 or 9450 | 266.7 | 2.84:1 |
| Slips and elevator grooves can be produced upon the customers’ requirements. | |||||||
