Elevator Link
- 8A/8C certified product.
- Load capacity 75 up to 450 tons.
- Maximum length 1.5M to 3.6M.
- Customized links available according to customer need.
- Drill Collar Raiser also provided
- Elevator Link
- DC-type Drill Collar Dolly Link Adapter
- Contact Us
Please check above buttons for more type ↑↑↑

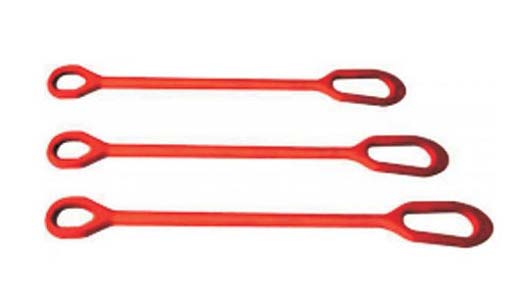

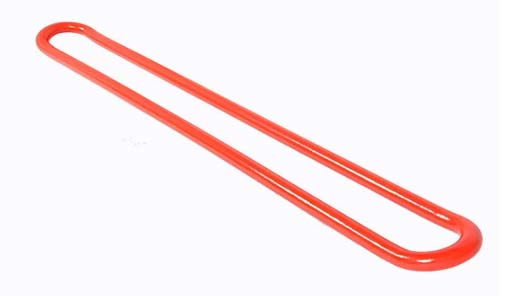

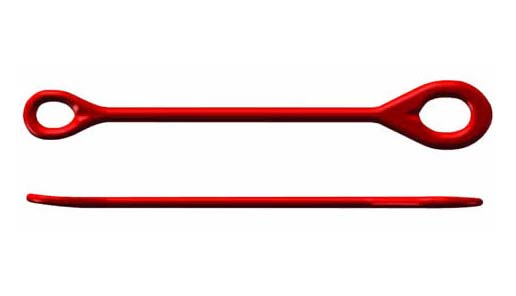

Elevator Link

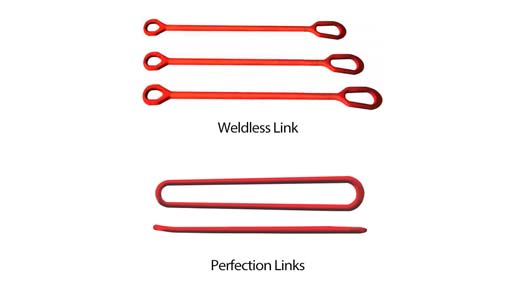

Elevator links are designed to hang elevators from Top Drive System or Hooks in drilling operation, it is also called elevator bails, drilling links or casing links. Elevator links usually work in pairs. The elevator link upper eye is used for the hook link ear, and the elevator link lower eye is used for the elevator. Links are forged with high-quality alloy steel. Elevator links can be divided into two types: weldless links and perfection links, they are designed and manufactured according to 8A/8C specifications for drilling and production hoisting equipment.
| Model | Spec | Rated Capacity | Length |
| Weldless Link | DH150 | 150 short ton | 1800 mm |
| DH250 | 250 short ton | 2700 mm | |
| DH350 | 350 short ton | 3300 mm | |
| DH500 | 500 short ton | 3600 mm | |
| Perfection Link | SH75 | 75 short ton | 1500 mm |
| SH100 | 100 short ton | 1500 mm | |
| SH150 | 150 short ton | 1700 mm |

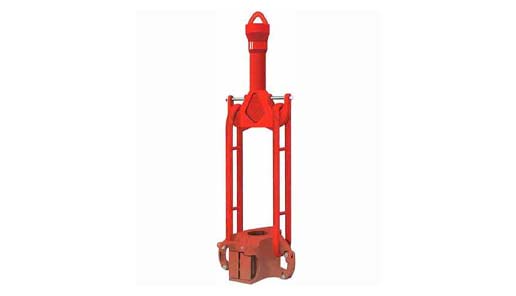

DC-type Drill Collar Dolly Link Adapter
DC-type Drill Collar Dolly Link Adapter is also called Drill Collar Raiser. It is mainly applied for holding and lifting drill collars in petroleum drilling, natural gas drilling and workover operation. This product is designed and manufactured according to 8A/8C spec. for drilling and production hoisting equipment. The structure of this drill collar dolly link adapter is logical, safe and reliable, which is safer than the traditional devices and extends service life for tools. It is a perfect device for drilling and workover operation.
| Model | DC |
| Max. Working Load | 150 short tons (1350kN) |
| Spec. of Raising Elevator | 3-1/2″, 4-1/2″ or 5″ DDZ Elevators |
Learn More When Inquiring
Buyer’s Guide
Please send us your inquiry with detail item description or with Model number. If there is no packing demand we take it as our regular exported standard packing. We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
We can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us your money will be safe.
Get Quick Response
Lake Petro is located in Dongying City, which is famous for Shengli Oilfield and the largest manufacturing hub of petroleum equipment in China. Following the principle of “quality first, science and technology innovated, people oriented”, every Lake Petro person is sparing no effort to provide the customers with best products and services. Our products are based on advanced production line and testing equipment, our products are designed and manufactured according to certification of ISO, GOST, etc.
