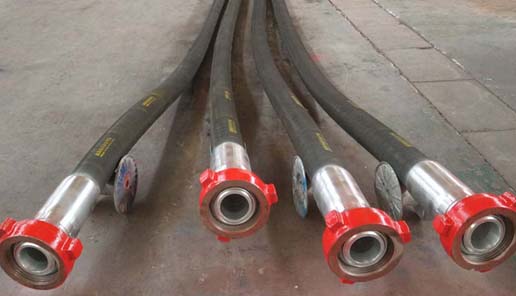

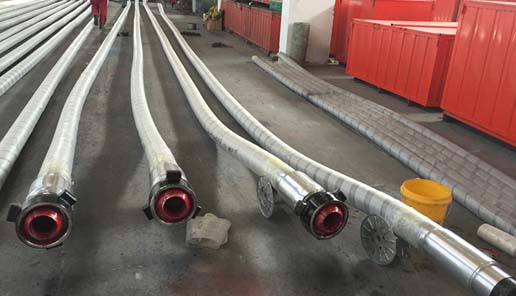

Drilling hose
- API 7k standard.
- Rotary and vibratory hoses are made in inner rubber layer and reinforced layer.
- It can be used in well drilling, well cementing, work-over and down-hole servicing operation.

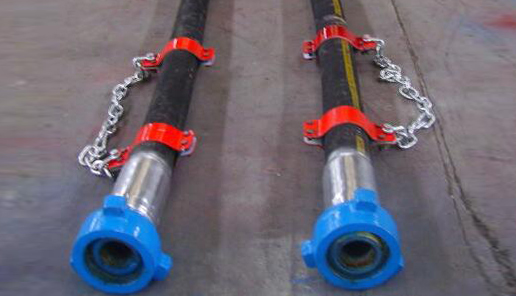

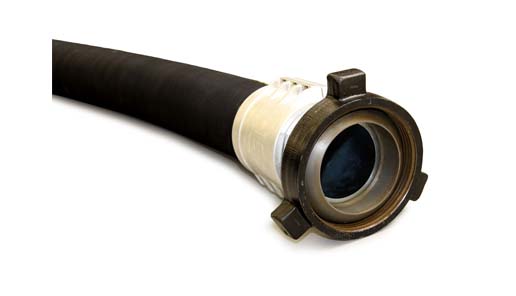

- Drilling hoses are often equipped with API end fittings.
- Drilling hoses are usually composed of three parts: tube, reinforcement and cover.
- Technical Specification
- Description
- Contact Us
| Rotary hose |
Rank |
Working pressure | Test pressure | Min. Bending Radius | Max. Length | Con. | |
| I.D. mm(in) | O.D | MPa (Psi) | MPa (Psi) | M | |||
| 51(2″) | 68.6 | A | 11(1,500) | 21(3,000) | 800 |
30 |
TBG, LP, Union |
| 69 | B | 14(2,000) | 28(4,000) | ||||
| 74.4 | C | 28(4,000) | 56(8,000) | 850 | |||
| 63.5(2-1/2″) | 81.9 | A | 11(1,500) | 21(3,000) | 900 | ||
| 82.3 | B | 14(2,000) | 28(4,000) | ||||
| 87.7 | C | 28(4,000) | 56(8,000) | 1,000 | |||
| 76(3″) | 95.2 | A | 11(1,500) | 21(3,000) | 950 | ||
| 100.1 | B | 14(2,000) | 28(4,000) | ||||
| 108.8 | C | 28(4,000) | 56(8,000) | 1,050 | |||
| 89(3-1/2″) | 117.3 | A | 11(1,500) | 21(3,000) | 1,000 | ||
| 119.5 | B | 14(2,000) | 28(4,000) | ||||
| 122.8 | C | 28(4,000) | 56(8,000) | 1,100 | |||
| 102(4″) | 128.4 | A | 11(1,500) | 21(3,000) | 1,050 | ||
| 138.8 | B | 14(2,000) | 28(4,000) | ||||
| 147.4 | C | 28(4,000) | 56(8,000) | 1,100 | |||
| 127(5″) | 150.0 | A | 11(1,500) | 21(3,000) | 1,200 | ||
| 154.1 | B | 14(2,000) | 28(4,000) | ||||
| 163.0 | C | 28(4,000) | 56(8,000) |
1,300 |
|||
| 152(6″) | 180.0 | A | 11(1,500) | 21(3,000) | |||
| 185.0 | B | 14(2,000) | 28(4,000) | ||||
| 196.0 | C | 28(4,000) | 56(8,000) | 1,400 | |||
| 51(2″) | 75.0 | D | 35(5,000) | 70(10,000) | 850 | ||
| 80.6 | E | 52(7,500) | 105(15,000) | 900 | |||
| 83.2 | F | 70(10,000) | 950 | ||||
| 63.5(2-1/2″) | 107.0 | D | 35(5,000) | 70(10,000) | 1,000 | ||
| 110.0 | E | 52(7,500) | 105(15,000) | 1,050 | |||
| 114.0 | F | 70(10,000) | 1,100 | ||||
| 76(3″) | 120.0 | D | 35(5,000) | 70(10,000) | 1,150 | ||
| 124.0 | E | 52(7,500) | 105(15,000) | 1,100 | |||
| 135.0 | F | 70(10,000) | 1,150 | ||||
| 89(3-1/2″) | 133.0 | D | 35(5,000) | 70(10,000) | 1,100 | ||
| 146.5 | E | 52(7,500) | 105(15,000) | 1,150 | |||
| 153.0 | F | 70(10,000) | |||||
| 102(4″) | 148.0 | D | 35(5,000) | 70(10,000) | 1,100 | ||
| 156.3 | E | 52(7,500) | 105(15,000) | 1,150 | |||
| 165.0 | F | 70(10,000) | 1,200 | ||||

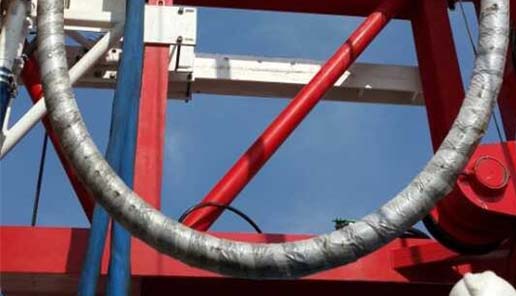

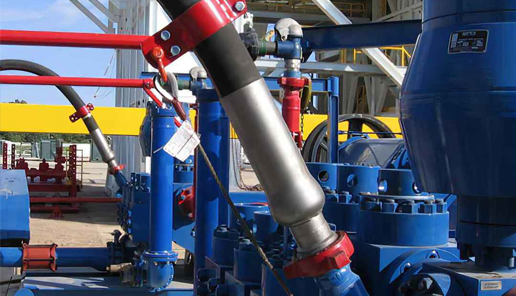

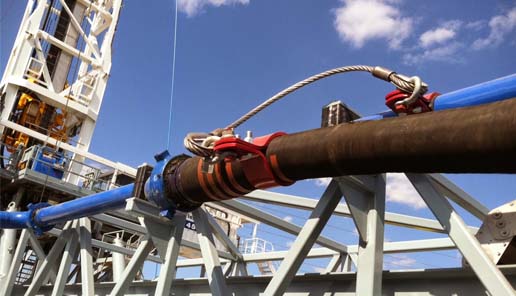

Drilling hose(rotary hose)made according to API 7K spec, applies for flexible hose connection between the top of oil drilling stand pipe and vertical moved swivel joint in well drilling, well cementing, work-over and down-hole servicing operation. drilling hose is also used to adjust the installation mistake between drilling pipe line and stand pipe to avoid shake, sometimes to transfer high pressure oil and water base mud with the lowest aniline point of 60°C from the swivel pipe in high pressure, and down-hole operation high medium such as water, oil etc, drilling rotary hose can be used for prefect work too.
Learn More When Inquiring
Buyer’s Guide
Please send us your inquiry with detail item description or with Model number. If there is no packing demand we take it as our regular exported standard packing. We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
We can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us your money will be safe.
